Factory Supply 16A-40A Lighting Bus duct Copper Busbar System
If you are interested in this product, you can
product name:
Factory Supply 16A-40A Lighting Bus duct Copper Busbar System
Product number:
KBA/KBB
Products Exhibitors:
Tianbao
Product Documentation:
No Related Documents
a brief introduction
Factory Supply 16A-40A Lighting Bus duct Copper Busbar System
Factory Supply 16A-40A Lighting Bus duct Copper Busbar System
Detailed description of
KB Series lighting busbar/busway can provide independent or combined use of lighting and power.It is a full and compatible range for lighting systems in small and medium-height buildings.
Technical characteristics
-
Current: 25A~ 40A
-
Voltage: 220~400V
-
Conductor material: Tin copper
-
Conductor quantity: 2~8
-

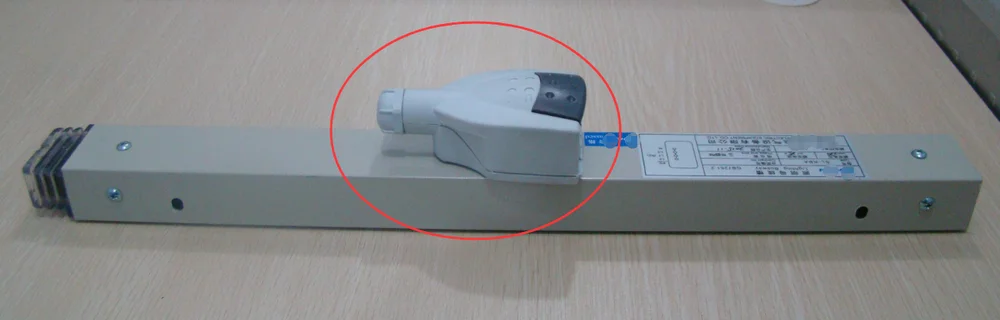

Tap-off units rated current: 10 and 16A
-
Rated insulating voltage: 690V
-
Protection index: IP55
-
Length of busway sections: 2m and 3m
Single circuit busway
|
Model
|
TB-KBA25
|
TB-KBA40
|
|
Rated Current(A)
|
25
|
40
|
|
Rated Operational Voltage(V)
|
220~400
|
220~400
|
|
Conductor Material
|
tinned copper
|
tinned copper
|
|
Conductor Qty
|
2,4
|
2,4
|
|
Standard Length(m)
|
2, 3
|
2, 3
|
|
Rated Insulation Voltage(V)
|
690
|
690
|
|
Frequency(Hz)
|
50, 60
|
50, 60
|
|
Water And Dust Protection
|
IP55
|
IP55
|
|
Standard
|
GB7251.2-2006
|
GB7251.2-2006
|
Double circuit busway
|
Model
|
TB-KBB25
|
TB-KB40
|
|
Rated Current(A)
|
25
|
40
|
|
Rated Operational Voltage(V)
|
220~400
|
220~400
|
|
Conductor Material
|
tinned copper
|
tinned copper
|
|
Conductor Qty
|
2 or 4, 4+2, 4+4
|
2 or 4, 4+2, 4+4
|
|
Return Circuit
|
1, 2
|
1, 2
|
|
Standard Length(m)
|
2, 3
|
2, 3
|
|
Rated Insulation Voltage(V)
|
690
|
690
|
|
Frequency(Hz)
|
50, 60
|
50, 60
|
|
Water And Dust Protection
|
IP55
|
IP55
|
|
Standard
|
GB7251.2-2006
|
GB7251.2-2006
|
Accessories
KB series lighting busway main components as below:

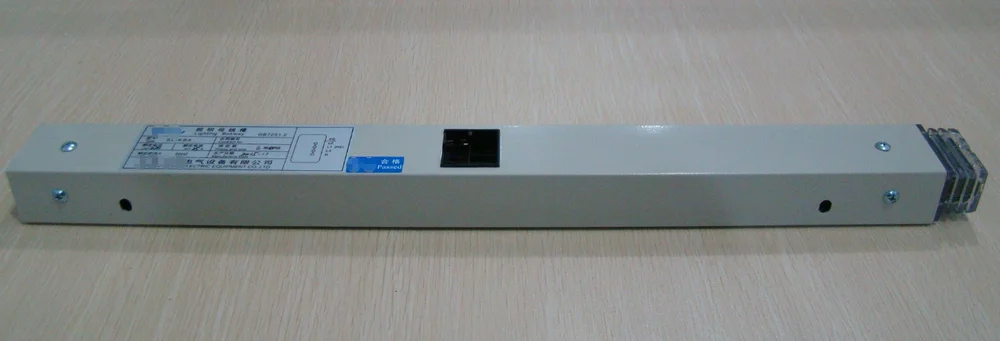

1. Rated current: 25A, 40A
2. Conductor qty: 2 or 4
3. Standard length: 2m, 3m

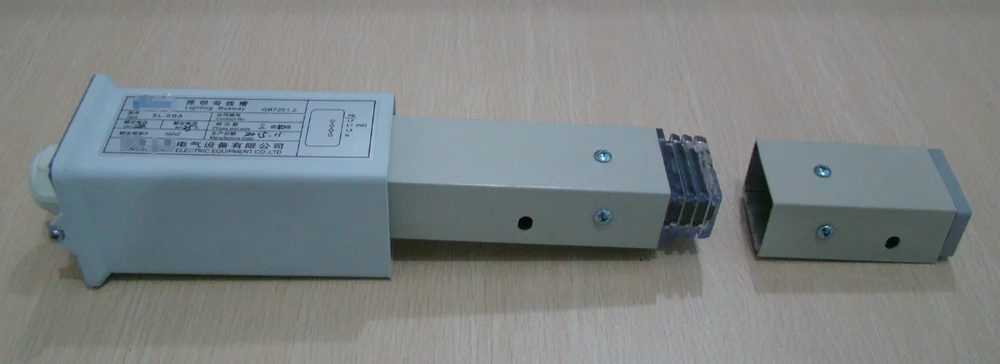

Feeder units are used to connect cable and straight elements. End caps are used to seal busbar terminal.

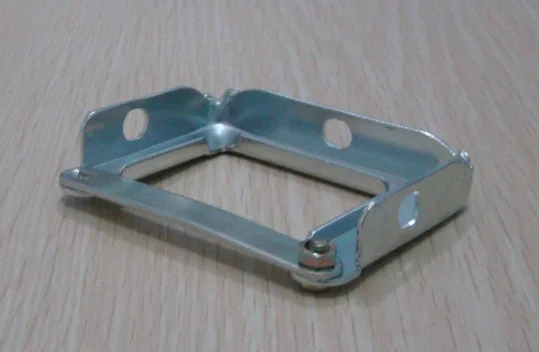

Fixing brackets can fix luminaires and busbar.

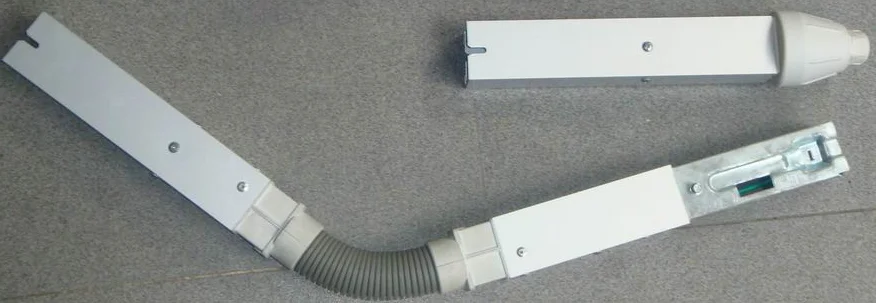

It can change direction and bypass the obstacles, and the installation method is same as straight element.
-
Industrial buildings: garages, workshops, farm buildings, logistic centers, greenhouses, etc.
-
Commercial centres: hyper/supermarkets, department stores etc.
-
Public buildings: exhibition halls, convention centers, airport etc.
